D Shape

ITEM# : D-ANSI-28

  • Shape: D Shape (Asymmetrical Shape)
  • Material: Steel
  • Gate: Twist Lock

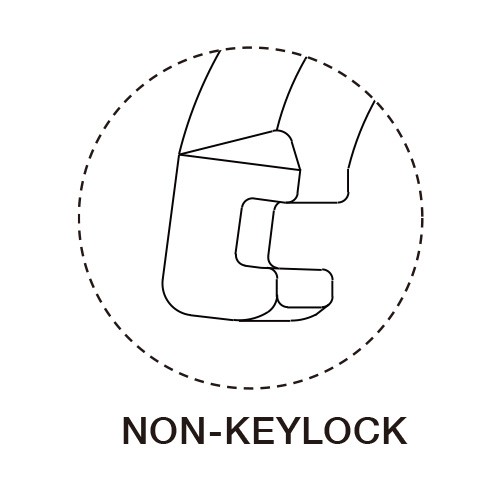

  • Nose: Non-Keylock
    (Key Lock On Request)
  • Opening: 26 mm
  • Safety Working Loading (SWL) Strength:5000kgf, Meets 3600LBS Gate Strength
  • Weight:261 g
  • (NOTE. D-ANSI-28-ST STAINLESS MADE:268g)
  • Width: 69 mm
  • Length: 111 mm
  • Finish: ZINC, CHROMATED or ED-BLACK
  • Captive Eye Pin: Upon Request
  • EN362& ANSI Z359.1 Compliance
